RFID Solutions
We offer various type of RFID Solutions with Passive and active RFID systems.
Applications
School Attendance management
Auto capture of School Students attendance while entering to the school. This Solution is designed with Active RFID technology which can capture the ID of 500 students within a second while walking inside the school entrance.
The Long range reading capacity of 10 meters to 200 meters is an added advantage and it can detect the ID card which has kept inside the pocket, Bag or anywhere in the body.
The solution includes the Complete attendance and students tracking inside the premise with various customs modules required by the customer.
Any customisation is welcomed.
RFID based Document Tracking systems
Based on the Passive UHF technology which had long distance range of 6 to 12 meter tag reading capacity.
These solutions are applicable to governments sectors like police department and other offices. Also in any organisation with large number of documents are being maintained and moved.
The solution is designed with UHF fixed readers, Hand held reader with complete Management software application.
The solution can be customised depends on the application.
Inventory /Warehouse Management
This solution is mainly used in tracking of large number of inventory and getting a regular update of the stocks. Also the material movements and dispatch can be tracked.
The solution is based on the customer requirements.
Products
Active RFID

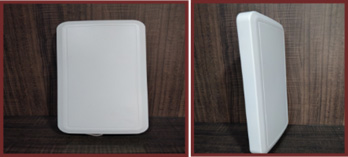

Active RFID Reader- SAN- ACTV01
| Technology specifications | |
| Operating frequency | 2.4GHz~2.5GHz ISM |
| Identify direction | Directional |
| Antenna | 15dBi build-in antenna |
| RF power range | -18.0dBm~0.0dBm( adjusted by 32 grade) |
| Receiving sensitivity | -90.0dBm |
| Operating mode | FHSS or fixed frequency(set by software) |
| Modulation | GFSK |
| Reading range | 0~100m adjustable |
| Anti-collision | Up to 500 tags read simultaneously |
| Communication speed | 250Kbps, 1Mbps, 2Mbps(adjustable) |
| Communication interface | RS-232, Ethernet |
| Optional function | ID match function |
| Power supply | AC input: 100~240V, 50/60Hz 1.2A DC output: 12V/1A |
| Product size | 260mm*260mm*90mm (Approximate) |
| Net weight | 750 g (Approximate) |
| Working temperature | -20℃~+70℃(-4℉~+158℉) |
| Storage temperature | -40℃~+85℃ (-40℉~+185℉) |
| Accessories | Power adapter, Power cable, RS-232 cable, Mounting bracket |
| Working status indication | LED |

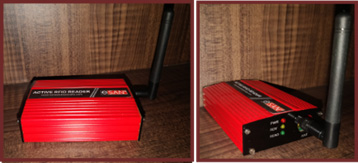

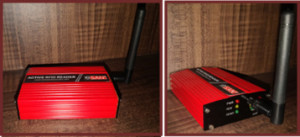

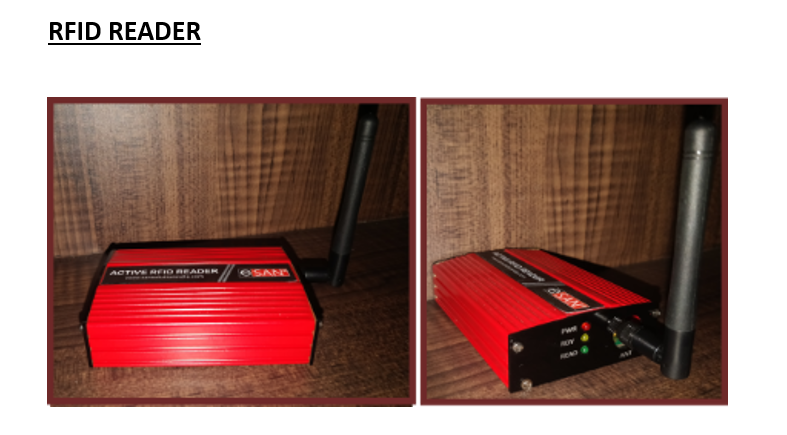

Active RFID Reader- SAN- ACTV02
| Technology specifications | |
| Operating frequency | 2.4GHz~2.5GHz ISM |
| Identify direction | Directional |
| Antenna | 8 dBi build-in antenna |
| RF power range | -18.0dBm~0.0dBm( adjusted by 32 grade) |
| Receiving sensitivity | -90.0dBm |
| Operating mode | FHSS or fixed frequency(set by software) |
| Modulation | GFSK |
| Reading range | 0~30 m adjustable |
| Anti-collision | Up to 500 tags read simultaneously |
| Communication speed | 250Kbps, 1Mbps, 2Mbps(adjustable) |
| Communication interface | RS-232/Ethernet /WI-FI |
| Optional function | ID match function |
| Power supply | AC input: 100~240V, 50/60Hz 1.2A DC output: 12V/1A |
| Product size | 95mm*65mm*25mm |
| Net weight | 200 gram (Approximate) |
| Working temperature | -20℃~+70℃(-4℉~+158℉) |
| Storage temperature | -40℃~+85℃ (-40℉~+185℉) |
| Accessories | Power adapter, Power cable, RS-232 cable, Mounting bracket |
| Working status indication | LED |

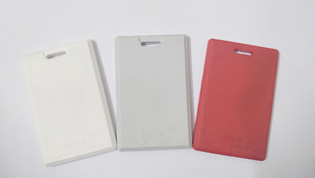

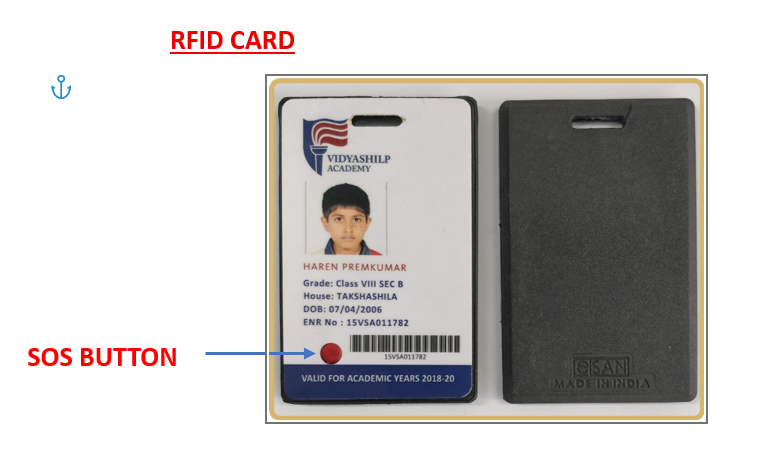

Active RFID Card - SAN- ACT-CRD
Features
- Suitable to adopt fixed frequency working mode, with powerful anti-jamming ability
- Effective reading range up to 100m (depend on reader and antenna, software configurable)
- Super wide working band design, conforming to relevant industry rules and also flexible in application development
- Multi-Tag reading at the same time (more than 100pcs per second), no limitation or interference by tag quantity in the reading range
- Ultra-low power consumption, average working current<10uA
- Built in SOS button (Optional)
UHF long Range reader –SAN- UHF 9601
Product application
- Non-stop electronic toll collection
- Asset tracking Management
- Access control management
- Warehouse management
- Production line management
Features
- Built-in High gain polarizing antenna
- stable and fast reading & written range
- FHSS working mode
- equipped with strong anti-interference capacity
- Multi-readers synchronization function, customized communication interface
- compatible with multi international protocol tags; water-proof and sun-proof.
UHF Hand held Reader- SAN- UHF -PDA
Quad-Core, Android 4.2.2 OS
Android Quad-core UHF RFID Handheld Reader, CPU frequency up to 1.4GHz, powerful processing capabilities. UHF RFID reading distance up to 4meters, can meet different demands of users.
Features
- CPU : Samsung Quad-Code 1.4GHz
- OS : Android 4.2.2
- Industrial Protection : IP65
- Screen : 3.5 inch
- UHF : Up to 4M
- Certification : CE, RoHS, CCC
